Requirements

1. Must Present Proof of Purchase (Receipt or Invoice)

1. Warranty Card is NOT sufficient Proof of Purchase unless Mailed In/Submitted within 30 days of purchase.
2. Must be Purchased from The Home Depot
3. Must be the Original Purchaser

4. Must be in Original Country of Purchase


Motor Warranty: 15 Years

Wall Control and Motor Controller: 3 Years

1. Installation and labor costs are not covered.
2. Damage caused by misuse, accidents, improper installation, or modifications is not covered.

Parts Warranty: 1 Year

1. Glass and blades are only covered if they arrived damaged in the original box.
2. Rust/corrosion is not covered.
3. Installation and labor costs are not covered.
4. Damage caused by misuse, accidents, improper installation, or modifications is not covered.


The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of 15 years after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), wall control and motor controller to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser. The manufacturers also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation or by afxing any accessories, is not covered by this warranty. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.

1. Installation Requirements

1. Covered Outdoor and Indoor Locations Only

2. Uncovered Outdoor and Coastal/Saline environments can cause corrosion

3. Heavy Duty UL Listed Outlet Box - With Fan Support up to 50 lbs or more

4. Access to support structure in the ceiling to attach a safety cable to.
5. Level ceiling (Cannot be installed on sloped ceilings)
2. Operation

1. Wall Control

1. Powered by Wire

2. Communicates Wirelessly
2. Hand Held Remote

1. Only included with the Mexico version of the fan.

2. Can be purchased separately from TAL for US and Canada customers.
3. Electronics

1. DC Motor
2. Receiver
1. Cannot be Bypassed

2. Motor Controller Built-In

3. Located in Motor Assembly (Accessed by removing the motor housing)
4. Wiring

1. Ground, Neutral, and Hot Wire required

2. Can only be installed on a single toggle switch - dual switches are not supported.

5. Wired Wall Control

1. 1.5 Amp Limit

1. Chart below shows how many fans can be wired to a single wall control.

2. Fan Size	Max Fans Without Light	Max Fans with Optional Light
   6 Ft.	2 Fans Maximum	1 Fan Only
   8 Ft.	2 Fans Maximum	1 Fan Only
   10 Ft.	1 Fan Only	1 Fan Only

2. Must be wired to a load for power.

1. Load can be a ceiling fan or other fixture like a light.

2. Requires a Line wire and a Load wire (no neutral).

3. Communicates with fans wirelessly

1. Does not need to be wired to a specific fan to work.

2. Can be paired to an unlimited number of fans as long as they are in range.

3. 30 ft. range.

6. Lighting

1. Not included with the fan (can be purchased separately).

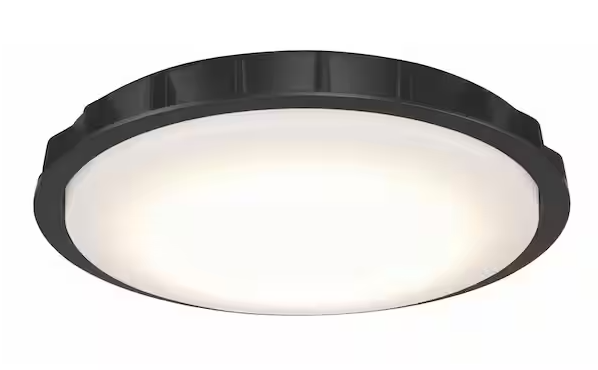

2. 24 Watt Frosted LED
1. Integrated LED

2. Dimmable (with wall control or remote)

3. 1600 Lumens

4. Correlated Color Temperature (Color Temperature can be Changed): 3000k, 4000k, and 5000k

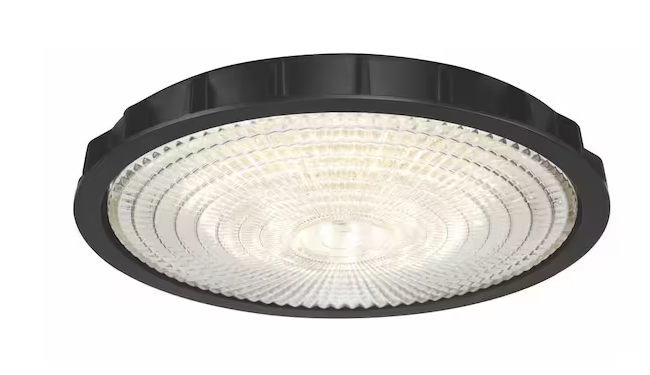

3. 40 Watt Clear LED
1. Integrated LED

2. Dimmable (with wall control or remote)

3. 3470 Lumens

4. Correlated Color Temperature (Color Temperature can be Changed): 3000k, 4000k, and 5000k
7. Mounting
1. Level/Flat ceiling only, not suitable for sloped ceilings.
2. Downrod

1. Threaded Rod

2. Aluminum HEX Style Ball

3. 8” Length

4. ¾” Interior Diameter | 1” Exterior Diameter

3. Compatible with longer universal downrods (Threaded with ¾” Interior Diameter / 1” Exterior Diameter)
4. Cannot be Flush Mounted - Downrod installation only.

8. Dimensions

1. Assembled Height: 16.73"

9. Motor Lead Wire

1. 78 Inches From Motor

1. Can be extended further for longer downrods with a ceiling fan wire extension kit or 18 AWG wire.


1. Fan is Running Slow or Does Not Turn On

1. Check Wall Control/Remote Light

1. Verify that the indicator light on the wall control (or hand held remote if applicable) flashes when buttons are pressed

2. If it does not flash:

1. Wall Control:

1. Verify the bottom on/off slider switch is pushed in all the way.
2. Review the wiring and ensure it is connected to a load and that no neutral wires are connected to the wall control.

2. Hand Held Remote Control: Ensure fresh batteries are installed in the remote.

1. Check Control Devices

1. Verify only the included wall control or hand held remote is in use.

2. Third party remotes, wall controls, and dimmer switches are not compatible with this fan model.

2. Check Wall Control Limit

1. If using the wired wall control, verify that the fans are not exceeding the amperage limit of the wall control:


2. Fan Size	Max Fans Without Light	Max Fans with Optional Light Installed
   6 Ft.	2 Fans Maximum	1 Fan Only
   8 Ft.	2 Fans Maximum	1 Fan Only
   10 Ft.	1 Fan Only	1 Fan Only

3. If the fans are exceeding the wall control limit, TAL offers an optional hand held remote control. The fans can be wired to a standard on/off toggle switch and operated with the remote instead.
3. Check Power Supply

1. Ensure power is on at the wall control and breaker.

2. Verify that the fan is connected to US standard 120 volts/60 hz AC power.

2. Re-Pair the Wall Control (or Hand Held Remote)

1. Re-pairing the wall control/remote will reset the receiver/motor controller module and resolve most issues.

2. Follow steps below.
1. 1. Turn of power to the fan from the wall switch or breaker for a few moments.

1. The wired wall control has a slider switch tab at the bottom that cuts power to the fan when pulled out (if wired to it).

2. 2. Ensure the Dipswitch is in the "D" position

1. Location

1. Wall Control - Remove the small face plate to expose the "O/D" dipswitch slider underneath.

2. Hand Held Remote Control - In the battery compartment.
3. 3. Restore power to the fan from the wall switch or breaker.

1. If using the wired wall control, push the slider switch all the way back in.
4. 4. Press and hold the "learn" button.

1. Location

1. Wall Control - Remove the small face plate to expose the button underneath.

2. Hand Held Remote Control - In the battery compartment.
2. Do this within 30 seconds of restoring power to the fan.

3. Use a pen or pointed tool if you are having a hard time firmly pressing the button down.

5. 5. Release the "learn" button when the fan begins to spin.
3. Check Wiring

1. Ensure AC power is off at the breaker before inspecting electrical connections.
2. Verify that the ceiling connections are properly connected and done as shown in the owner’s manual.

3. Verify the connections have not been pulled out of their wire nuts.
4. Customer Service

1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.

2. A defective wall control is the most likely culprit for fan function issues, and easily replaced without disassembling the entire fan.

2. Fan has Low Airflow

1. Blade Direction
1. Ensure the fan is set to the correct direction using the fan direction (reverse) button on the wall control or the hand held remote (if applicable).
2. Counter-clockwise for forward/downward airflow (summer mode).
3. Clockwise for reverse/upward airflow (winter mode).
2. Blade Height
1. Ensure the fan blades are between 7ft – 9 ft from the floor for optimal airflow.
2. If the fan is installed too high, airflow will be reduced, and you will need a longer downrod (purchased separately) to lower the fan.

3. Fan Speed
1. Ensure the fan is set to the highest fan speed for maximum airflow.

1. Speed #6 on the Wall Control

2. "+" Button on the Remote Control (keep pressing until LED indicator bar on remote show full green).

2. If the fan appears to be running slower than usual, follow the “Fan is Running Slow” checklist above.

4. Considerations

1. Blade Size
1. Larger blade ceiling fans will push more air, but they will distribute it over a wider area.

2. Smaller blade fans concentrate air into a smaller space, creating a stronger wind.

3. The 10 ft fan won't feel as strong as the 6 ft fan, but will be able to reach the furthest edges of very large spaces.

4. The 8 ft fan is the in-between compromise for both.

2. Location

1. Indoor installations will have improved airflow because the fan can cycle air from the walls/ceiling.

2. Open/outdoor installation will have reduced airflow because there may not be 4 walls to properly funnel the air.


3. Fan is Wobbling

1. Check Screws/Loose Parts
1. Verify that all screws are tightened properly; loose screws on the coupling cover, downrod, or hanger bracket can cause wobble.

2. Check for Extended Downrod

1. Using very long downrods (3 ft. or more) can introduce minor wobble at higher fan speeds.

2. A balancing kit can be sent to help reduce the wobble a bit, but may not clear it all.

3. Minor wobble on long downrods is normal and not warranty issue.

3. Check Mounting Structure

1. The fan must be installed on a level/flat ceiling, it cannot be installed on any kind of slope with the included mounting hardware.

2. The fan must be installed on a UL listed ceiling outlet box that is rated "For Fan Support" of at least 50 lbs.

3. Installing on a light fixture-only box or other type of mounting structure can cause stability and safety issues.
4. Check Blades
1. Verify that the blades are level with each other and are not warped.

1. You can verify blade level issues by measuring from the ceiling to the tip of one blade, then rotating the fan by hand to get the measurements of all blades.

2. Any deviation over 1/8 of an inch may indicate a warped blade, warped blade holder, or a loose installation of those components.

2. Run the fan without the blades to see if wobble persists with the blade arms.
3. If wobble stops:

1. Minor Wobble: May be improved with a balancing kit.

2. Sever Wobble: May require replacement blades.

5. Check Blade Arms
1. If wobble continues, remove the blade arms and run the fan again without them.
2. If wobble stops:

1. Minor Wobble: May be improved with a balancing kit.
2. Sever Wobble: May require replacement blade arms.
6. Customer Service
1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.

2. Attaching a video of the noise to your ticket will help customer service assist you further.

1. Light Does Not Turn On, Is Dim, or Flickers

1. Check Wall Control/Remote Light

1. Verify that the indicator light on the wall control (or hand held remote if applicable) flashes when buttons are pressed

2. If it does not flash:

1. Wall Control:

1. Verify the bottom on/off slider switch is pushed in all the way.
2. Review the wiring and ensure it is connected to a load and that no neutral wires are connected to the wall control.

2. Hand Held Remote Control: Ensure fresh batteries are installed in the remote.

1. Check Control Devices

1. Verify only the included wall control or hand held remote is in use.

2. Third party remotes, wall controls, and dimmer switches are not compatible with this fan model.

2. Check Wall Control Limit

1. If using the wired wall control, verify that the fans are not exceeding the amperage limit of the wall control:


2. Fan Size	Max Fans Without Light	Max Fans with Optional Light Installed
   6 Ft.	2 Fans Maximum	1 Fan Only
   8 Ft.	2 Fans Maximum	1 Fan Only
   10 Ft.	1 Fan Only	1 Fan Only

3. If the fans are exceeding the wall control limit, TAL offers an optional hand held remote control. The fans can be wired to a standard on/off toggle switch and operated with the remote instead.
3. Check Power Supply

1. Ensure power is on at the wall control and breaker.

2. Verify that the fan is connected to US standard 120 volts/60 hz AC power.

2. Re-Pair the Wall Control (or Hand Held Remote)

1. Re-pairing the wall control/remote will reset the receiver/motor controller module and resolve most issues.

2. Follow steps below.
1. 1. Turn of power to the fan from the wall switch or breaker for a few moments.

1. The wired wall control has a slider switch tab at the bottom that cuts power to the fan when pulled out (if wired to it).

2. 2. Ensure the Dipswitch is in the "D" position

1. Location

1. Wall Control - Remove the small face plate to expose the "O/D" dipswitch slider underneath.

2. Hand Held Remote Control - In the battery compartment.
3. 3. Restore power to the fan from the wall switch or breaker.

1. If using the wired wall control, push the slider switch all the way back in.
4. 4. Press and hold the "learn" button.

1. Location

1. Wall Control - Remove the small face plate to expose the button underneath.

2. Hand Held Remote Control - In the battery compartment.
2. Do this within 30 seconds of restoring power to the fan.

3. Use a pen or pointed tool if you are having a hard time firmly pressing the button down.

5. 5. Release the "learn" button when the fan begins to spin.
1. Check Wiring

1. Ensure AC power is off at the breaker before inspecting electrical connections.
2. Verify that the ceiling connections are properly connected and done as shown in the owner’s manual.

3. Verify the connections have not been pulled out of their wire nuts.
4. Verify the plugs connecting the light kit to the bottom of the motor are fully clasped together, wires are not pinched, and pins have not been pushed out of connectors.

2. Customer Service
1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.

2. A defective motor controller (receiver) is the most likely culprit for light issues.

1. Fan and Light Do Not Turn On

1. Check Wall Control/Remote Light

1. Verify that the indicator light on the wall control (or hand held remote if applicable) flashes when buttons are pressed

2. If it does not flash:

1. Wall Control:

1. Verify the bottom on/off slider switch is pushed in all the way.
2. Review the wiring and ensure it is connected to a load and that no neutral wires are connected to the wall control.

2. Hand Held Remote Control: Ensure fresh batteries are installed in the remote.

2. Check Control Devices

1. Verify only the included wall control or hand held remote is in use.

2. Third party remotes, wall controls, and dimmer switches are not compatible with this fan model.

3. Check Wall Control Limit

1. If using the wired wall control, verify that the fans are not exceeding the amperage limit of the wall control:


2. Fan Size	Max Fans Without Light	Max Fans with Optional Light Installed
   6 Ft.	2 Fans Maximum	1 Fan Only
   8 Ft.	2 Fans Maximum	1 Fan Only
   10 Ft.	1 Fan Only	1 Fan Only

3. If the fans are exceeding the wall control limit, TAL offers an optional hand held remote control. The fans can be wired to a standard on/off toggle switch and operated with the remote instead.

4. Check Power Supply

1. Ensure power is on at the wall control and breaker.

2. Verify that the fan is connected to US standard 120 volts/60 hz AC power.

5. Re-Pair the Wall Control (or Hand Held Remote)

1. Re-pairing the wall control/remote will reset the receiver/motor controller module and resolve most issues.

2. Follow steps below.
1. 1. Turn of power to the fan from the wall switch or breaker for a few moments.

1. The wired wall control has a slider switch tab at the bottom that cuts power to the fan when pulled out (if wired to it).

2. 2. Ensure the Dipswitch is in the "D" position

1. Location

1. Wall Control - Remove the small face plate to expose the "O/D" dipswitch slider underneath.

2. Hand Held Remote Control - In the battery compartment.
3. 3. Restore power to the fan from the wall switch or breaker.

1. If using the wired wall control, push the slider switch all the way back in.
4. 4. Press and hold the "learn" button.

1. Location

1. Wall Control - Remove the small face plate to expose the button underneath.

2. Hand Held Remote Control - In the battery compartment.
2. Do this within 30 seconds of restoring power to the fan.

3. Use a pen or pointed tool if you are having a hard time firmly pressing the button down.

5. 5. Release the "learn" button when the fan begins to spin.
6. Check Wiring

1. Ensure AC power is off at the breaker before inspecting electrical connections.
2. Verify that the ceiling connections are properly connected and done as shown in the owner’s manual.

3. Verify the connections have not been pulled out of their wire nuts.
7. Customer Service

1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.

2. A defective wall control is the most likely culprit for fan function issues, and easily replaced without disassembling the entire fan.

2. Fan and Light are Turning On or Off on their Own

1. Check Control Devices

1. Verify only the included wall control or hand held remote is in use.

2. Third party remotes, wall controls, and dimmer switches are not compatible with this fan model.

2. Check Wall Control Limit

1. If using the wired wall control, verify that the fans are not exceeding the amperage limit of the wall control:


2. Fan Size	Max Fans Without Light	Max Fans with Optional Light Installed
   6 Ft.	2 Fans Maximum	1 Fan Only
   8 Ft.	2 Fans Maximum	1 Fan Only
   10 Ft.	1 Fan Only	1 Fan Only

3. If the fans are exceeding the wall control limit, TAL offers an optional hand held remote control. The fans can be wired to a standard on/off toggle switch and operated with the remote instead.

3. Check Power Supply

1. Verify that the fan is connected to US standard 120 volts/60 hz AC power.

4. Re-Pair the Wall Control (or Hand Held Remote) using the Memory Reset Function

1. Re-pairing the wall control/remote  using the memory reset function will resolve most interference issues.

2. Follow steps below.
1. 1. Turn of power to the fan from the wall switch or breaker for a few moments.

1. The wired wall control has a slider switch tab at the bottom that cuts power to the fan when pulled out (if wired to it).

2. 2. Ensure the Dipswitch is in the "D" position

1. Location

1. Wall Control - Remove the small face plate to expose the "O/D" dipswitch slider underneath.

2. Hand Held Remote Control - In the battery compartment.
3. 3. Restore power to the fan from the wall switch or breaker.

1. If using the wired wall control, push the slider switch all the way back in.
4. 4. Press and hold the "learn" button for at least 15 seconds.

1. Location

1. Wall Control - Remove the small face plate to expose the button underneath.

2. Hand Held Remote Control - In the battery compartment.
2. Do this within 30 seconds of restoring power to the fan.

3. Use a pen or pointed tool if you are having a hard time firmly pressing the button down.

5. 5. Release the "learn" button after the 15 seconds have passed.

1. If unsure, continue holding until 30 seconds have passed.

5. Check Wiring

1. Ensure AC power is off at the breaker before inspecting electrical connections.
2. Verify that the ceiling connections are properly connected and done as shown in the owner’s manual.

3. Verify the connections have not been pulled out of their wire nuts.
6. Customer Service

1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.

2. A defective motor controller (receiver) can cause issues like this in rare cases.

1. Wall Control/Remote not Pairing to Fan


1. 1. Check Wall Control/Remote Light

   1. Verify that the indicator light on the wall control (or hand held remote if applicable) flashes when buttons are pressed

   2. If it does not flash:

   1. Wall Control:

   1. Verify the bottom on/off slider switch is pushed in all the way.
   2. Review the wiring and ensure it is connected to a load and that no neutral wires are connected to the wall control.

   2. Hand Held Remote Control: Ensure fresh batteries are installed in the remote.

   2. Check Control Devices

   1. Verify only the included wall control or hand held remote is in use.

   2. Third party remotes, wall controls, and dimmer switches are not compatible with this fan model.

   3. Check Wall Control Limit

   1. If using the wired wall control, verify that the fans are not exceeding the amperage limit of the wall control:


   2. Fan Size	Max Fans Without Light	Max Fans with Optional Light Installed
      6 Ft.	2 Fans Maximum	1 Fan Only
      8 Ft.	2 Fans Maximum	1 Fan Only
      10 Ft.	1 Fan Only	1 Fan Only

   3. If the fans are exceeding the wall control limit, TAL offers an optional hand held remote control. The fans can be wired to a standard on/off toggle switch and operated with the remote instead.

   4. Check Power Supply

   1. Ensure power is on at the wall control and breaker.

   2. Verify that the fan is connected to US standard 120 volts/60 hz AC power.

   5. Re-Pair the Wall Control (or Hand Held Remote)

   1. Re-pairing the wall control/remote will reset the receiver/motor controller module and resolve most issues.

   2. Follow steps below.
   1. 1. Turn of power to the fan from the wall switch or breaker for a few moments.

   1. The wired wall control has a slider switch tab at the bottom that cuts power to the fan when pulled out (if wired to it).

   2. 2. Ensure the Dipswitch is in the "D" position

   1. Location

   1. Wall Control - Remove the small face plate to expose the "O/D" dipswitch slider underneath.

   2. Hand Held Remote Control - In the battery compartment.
   3. 3. Restore power to the fan from the wall switch or breaker.

   1. If using the wired wall control, push the slider switch all the way back in.
   4. 4. Press and hold the "learn" button.

   1. Location

   1. Wall Control - Remove the small face plate to expose the button underneath.

   2. Hand Held Remote Control - In the battery compartment.
   2. Do this within 30 seconds of restoring power to the fan.

   3. Use a pen or pointed tool if you are having a hard time firmly pressing the button down.

   5. 5. Release the "learn" button when the fan begins to spin.
   6. Check Wiring

   1. Ensure AC power is off at the breaker before inspecting electrical connections.
   2. Verify that the ceiling connections are properly connected and done as shown in the owner’s manual.

   3. Verify the connections have not been pulled out of their wire nuts.
   7. Customer Service

   1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.

   2. A defective wall control is the most likely culprit for fan function issues, and easily replaced without disassembling the entire fan.

2. Wall Control/Remote is Controlling Multiple Fans (User wants each control operating its own fan)


1. Re-Pair the Wall Control (or Hand Held Remote) using the Memory Reset Function

1. Re-pairing the wall control/remote  using the memory reset function will resolve most interference issues.

2. Follow steps below.
1. 1. Turn of power to all fans from the wall switch or breaker.

1. The wired wall control has a slider switch tab at the bottom that cuts power to the fan when pulled out (if wired to it).

2. 2. Ensure the Dipswitch is in the "D" position

1. Location

1. Wall Control - Remove the small face plate to expose the "O/D" dipswitch slider underneath.

2. Hand Held Remote Control - In the battery compartment.
3. 3. Restore power to just the first fan only from the wall switch or breaker.

1. If using the wired wall control, push the slider switch all the way back in.
4. 4. Press and hold the "learn" button for at least 15 seconds.

1. Location

1. Wall Control - Remove the small face plate to expose the button underneath.

2. Hand Held Remote Control - In the battery compartment.
2. Do this within 30 seconds of restoring power to the fan.

3. Use a pen or pointed tool if you are having a hard time firmly pressing the button down.

5. 5. Release the "learn" button after the 15 seconds have passed.

1. If unsure, continue holding until 30 seconds have passed.

6. This will clear the fan's memory and it will only save the current wall control/remote used for the process as its only control device.

7. 6. Turn off power to recently paired fan, and repeat steps 2-5 for the remaining fans and controls.

1. Only the fan being actively paired should have power.

2. All other fans, even if they have been paired previously, should have power off so they do not unintentionally memorize new remotes.


3. User wants a single wall control or hand held remote to control multiple fans

1. Verify that the fans are within 30 ft of range from the wall control or hand held remote.

2. Pair the Wall Control (or Hand Held Remote)

1. Pairing the wall control/remote will add it to the memory of all fans.

2. Follow steps below.

1. 1. Turn of power to all fans from the wall switch or breaker for a few moments.

1. The wired wall control has a slider switch tab at the bottom that cuts power to the fan when pulled out (if wired to it).

2. 2. Ensure the Dipswitch is in the "D" position

1. Location

1. Wall Control - Remove the small face plate to expose the "O/D" dipswitch slider underneath.

2. Hand Held Remote Control - In the battery compartment.

3. 3. Restore power to the fan from the wall switch or breaker.

1. If using the wired wall control, push the slider switch all the way back in.

4. 4. Press and hold the "learn" button.

1. Location

1. Wall Control - Remove the small face plate to expose the button underneath.

2. Hand Held Remote Control - In the battery compartment.

2. Do this within 30 seconds of restoring power to the fan.

3. Use a pen or pointed tool if you are having a hard time firmly pressing the button down.

5. 5. Release the "learn" button when all fans have begun to spin.


4. An unwanted remote was paired to the fan (un-pairing instructions)

1. Clear unwanted controllers using the Memory Reset Function

1. Re-pairing the wall control/remote using the memory reset function will resolve most interference issues.

2. Follow steps below.

1. 1. Turn of power to all fans from the wall switch or breaker.

1. The wired wall control has a slider switch tab at the bottom that cuts power to the fan when pulled out (if wired to it).

2. 2. Ensure the Dipswitch is in the "D" position

1. Location

1. Wall Control - Remove the small face plate to expose the "O/D" dipswitch slider underneath.

2. Hand Held Remote Control - In the battery compartment.

3. 3. Restore power to just the first fan only from the wall switch or breaker.

1. If using the wired wall control, push the slider switch all the way back in.

4. 4. Press and hold the "learn" button for at least 15 seconds.

1. Location

1. Wall Control - Remove the small face plate to expose the button underneath.

2. Hand Held Remote Control - In the battery compartment.

2. Do this within 30 seconds of restoring power to the fan.

3. Use a pen or pointed tool if you are having a hard time firmly pressing the button down.

5. 5. Release the "learn" button after the 15 seconds have passed.

1. If unsure, continue holding until 30 seconds have passed.

6. This will clear the fan's memory and it will only save the current wall control/remote used for the process as its only control device.

7. 6. Turn off power to recently paired fan, and repeat steps 2-5 for the remaining fans and controls.

1. Only the fan being actively paired should have power.

2. All other fans, even if they have been paired previously, should have power off so they do not unintentionally memorize new remotes.


5. Fan and Light are Turning On or Off on their Own

1. Check Control Devices

1. Verify only the included wall control or hand held remote is in use.

2. Third party remotes, wall controls, and dimmer switches are not compatible with this fan model.

2. Check Wall Control Limit

1. If using the wired wall control, verify that the fans are not exceeding the amperage limit of the wall control:


2. Fan Size	Max Fans Without Light	Max Fans with Optional Light Installed
   6 Ft.	2 Fans Maximum	1 Fan Only
   8 Ft.	2 Fans Maximum	1 Fan Only
   10 Ft.	1 Fan Only	1 Fan Only

3. If the fans are exceeding the wall control limit, TAL offers an optional hand held remote control. The fans can be wired to a standard on/off toggle switch and operated with the remote instead.

3. Check Power Supply

1. Verify that the fan is connected to US standard 120 volts/60 hz AC power.

4. Re-Pair the Wall Control (or Hand Held Remote) using the Memory Reset Function

1. Re-pairing the wall control/remote  using the memory reset function will resolve most interference issues.

2. Follow steps below.
1. 1. Turn of power to the fan from the wall switch or breaker for a few moments.

1. The wired wall control has a slider switch tab at the bottom that cuts power to the fan when pulled out (if wired to it).

2. 2. Ensure the Dipswitch is in the "D" position

1. Location

1. Wall Control - Remove the small face plate to expose the "O/D" dipswitch slider underneath.

2. Hand Held Remote Control - In the battery compartment.
3. 3. Restore power to the fan from the wall switch or breaker.

1. If using the wired wall control, push the slider switch all the way back in.
4. 4. Press and hold the "learn" button for at least 15 seconds.

1. Location

1. Wall Control - Remove the small face plate to expose the button underneath.

2. Hand Held Remote Control - In the battery compartment.
2. Do this within 30 seconds of restoring power to the fan.

3. Use a pen or pointed tool if you are having a hard time firmly pressing the button down.

5. 5. Release the "learn" button after the 15 seconds have passed.

1. If unsure, continue holding until 30 seconds have passed.

5. Check Wiring

1. Ensure AC power is off at the breaker before inspecting electrical connections.
2. Verify that the ceiling connections are properly connected and done as shown in the owner’s manual.

3. Verify the connections have not been pulled out of their wire nuts.
6. Customer Service

1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.

2. A defective motor controller (receiver) can cause issues like this in rare cases.

1. The Fan Beeps when Functions are Used (Wan't to disable beeping)
1. Re-Pair the Wall Control or Remote Using Long Press
1. Re-pairing the wall control/remote with a long hold will toggle the beeping function.

2. Follow steps below.
1. 1. Turn of power to the fan from the wall switch or breaker for a few moments.

1. The wired wall control has a slider switch tab at the bottom that cuts power to the fan when pulled out (if wired to it).

2. 2. Ensure the Dipswitch is in the "D" position

1. Location

1. Wall Control - Remove the small face plate to expose the "O/D" dipswitch slider underneath.

2. Hand Held Remote Control - In the battery compartment.
3. 3. Restore power to the fan from the wall switch or breaker.

1. If using the wired wall control, push the slider switch all the way back in.
4. 4. Press and hold the "learn" button.

1. Location

1. Wall Control - Remove the small face plate to expose the button underneath.

2. Hand Held Remote Control - In the battery compartment.
2. Do this within 30 seconds of restoring power to the fan.

3. Use a pen or pointed tool if you are having a hard time firmly pressing the button down.

5. 5. When the fan begins to spin, continue to hold the "learn" button for an additional 5 seconds, then release.
