56" Hugger

56" Hugger


Use the tabs below for fan information and for troubleshooting guidance.

Need customer service support? Submit a Ticket

Alert
Important: The Hugger had a revision in 2026 to its light shade material and design. Check the Version tab to confirm if you have the previous glass shade design or the new shatter-proof polycarbonate shade design.

Identification

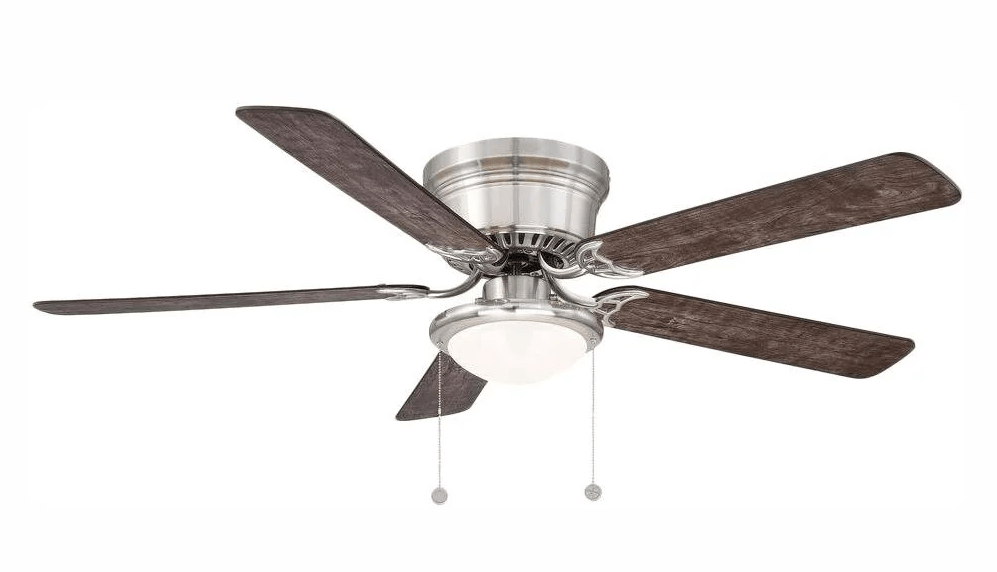

BRUSHED NICKEL FINISH

  1. Model #
    1. AL383D-BN
  2. SKU #
    1. 1003023409
  3. UPC #
    1. 792145372677

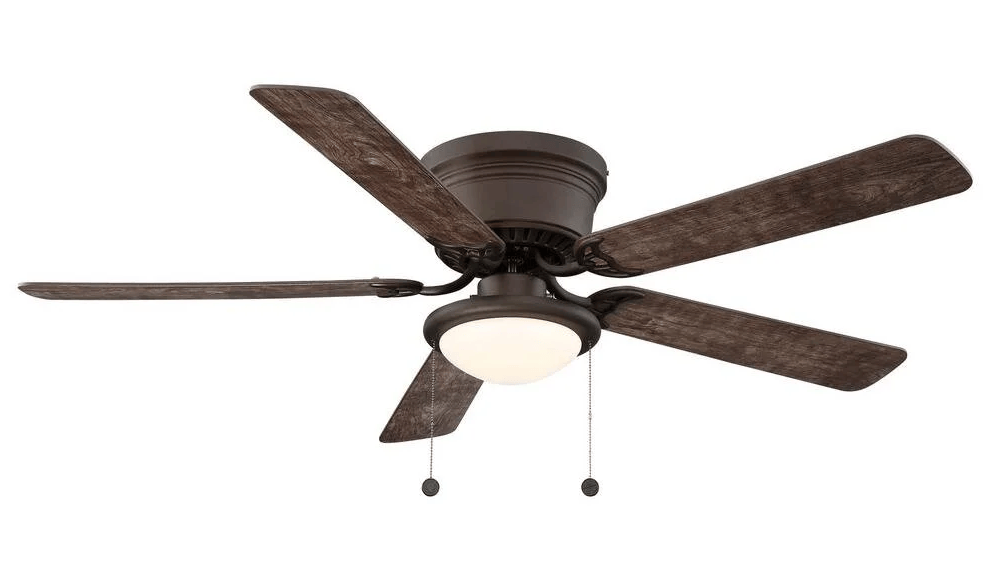

ESPRESSO BRONZE FINISH

  1. Model #
    1. AL383D-EB
  2. SKU #
    1. 1003023402
  3. UPC #
    1. 792145372660






Version
Alert
You must identify which Hugger Version you have before ordering shades, light kits, or switch caps.

  1. Summary
    1. In 2026 Hugger ceiling fans were updated to use twist and lock plastic shades instead of glass shades that use thumbscrews.
    2. The SKU and UPC are the same for both versions for all finishes - the only way to identify the version is using the checklist below.
  2. Compatibility
    1. The Motor, Light Kit, and Shade are NOT cross compatible. You cannot install new version parts on old version parts and you cannot install old version parts on new version parts.
    2. All other parts are the same between versions, only the motor, light kit, and shade have been changed.
    3. Motor, Light Kit, and Shade MUST be all old version or all new version, no mixing.
    4. Switch Caps (sold separately) must also match the old version or new version as they are also NOT cross compatible.

  3. Identification
    1. Shade
      1. Is the shade made of glass or plastic?
        1. Glass = old version

        2. Plastic = new version
    2. Fan Motor
      1. Does the reverse switch go up and down, or side to side?
        1. Up and Down = old version

        2. Side to Side = new version

    3. Light Kit
      1. Does the light kit have a foil pad or white paint underneath?
        1. Foil Pad = old version

        2. White paint = new version

Warranty Terms

Requirements

  1. Must Present Proof of Purchase (Receipt or Invoice)
    1. Warranty Card is NOT sufficient Proof of Purchase unless Mailed In/Submitted within 30 days of purchase.
  2. Must be Purchased from The Home Depot
  3. Must be the Original Purchaser
  4. Must be in Original Country of Purchase

Motor Warranty: 15 Years

  1. Electronics and control devices such as capacitors, switches, and receivers are not part of the motor warranty.
  2. Fan motor must be mailed to the TAL service center for repair with approval from customer service and a signed service agreement form.
  3. Replacement motors are not sent under the lifetime warranty.
  4. Customer is responsible for shipping the motor to the service center. Return shipping after repair is covered.
  5. Installation or labor costs are not covered.
  6. Damage from misuse or accident will void the warranty.

Parts Warranty: 1 Year

  1. Glass and blades are only covered if they arrived damaged in the original box.
  2. Rust/corrosion is not covered.
  3. Installation or labor costs are not covered.
  4. Damage caused by misuse, accidents, improper installation, or modifications is not covered.

Full Warranty Terms:

Quote
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of 15 years after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass) and all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and materials at the time of shipment for a period of one year from the date of purchase by the original purchaser. We agree to correct such defects without charge or, at our option, replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation or by affixing any accessories is not covered by this warranty. This warranty does not cover any changes in finish, including rusting, pitting, corroding, tarnishing or peeling. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Installation
Digital copies of the owner's manuals for all fan versions are attached to this webpage. Scroll down to the bottom of this page to find the attachments and choose the one for your fan.

New Plastic Shade Version

Alert
Under Construction

Previous Glass Shade Version

Product Specifications
  1. Installation Requirements
    1. Indoor Locations Only
    2. Outdoor, High Humidity and Coastal/Saline environments can cause corrosion and blades to droop
    3. UL Listed Outlet Box - With Fan Support up to 35 lbs or more
    4. Level ceiling (Cannot be installed on sloped ceilings)
  2. Operation
    1. Pull Chain
    2. Compatible with most Universal 3-speed Ceiling Fan Remote Control or Wall Control Kits
      1. If using dimming feature, you must install dimmable bulbs
      2. Hampton Bay Ceiling Fan Remote Control, Store SKU 1000557331, is a known compatible model
      3. Sold Separately
  3. Electronics
    1. AC Motor
    2. 3-Speed Capacitor
      1. Located in switch housing under motor
    3. Reverse Slider Switch
      1. Located in switch housing under motor
    4. Fan Speed Pull Chain Switch
      1. Located in switch housing under motor
    5. Light Toggle Pull Chain Switch
      1. Located in switch housing under motor
  4. Wiring
    1. Ground, Neutral, and Hot Wire required
    2. Supports single switch and Dual Switch configurations
    3. Black Wire = Fan Power
    4. Blue Wire = Light Power
  5. Lighting
    1. x1 E26 Medium Base Socket
    2. Lates US version includes a 9.5W LED Bulb
      1. Non-Dimmable
    3. 800 Lumens
    4. 2700K Color Temperature
    5. Compatible with Medium Base LED Bulbs up to 60 Watts.
    6. Universal Light Kits
      1. Old Version is compatible with universal light kits (attached to the center stem/cap of the original light kit).
      2. New Version is NOT compatible with universal ceiling fan light kits.
  6. No-Light Installation
    1. Old Glass Shade Version can be installed without light using a Switch Cap
      1. Switch Cap can be Purchased from TAL
      2. Switch Cap is also built into light kit and can be detached and have its hole covered with plug
      3. Switch Cap diameter: 4 Inches
    2. New Plastic Shade Version can NOT be installed without the light
      1. No Compatible Switch Cap option available.
  7. Mounting
    1. Flush Mount Only
    2. Not Compatible with Downrods
  8. Dimensions
    1. Assembled Height: 12.99"
    2. Blade Span: 56"
    3. Glass Shade
      1. Fitter Diameter: 6.75"
      2. 8.25" Diameter at the Widest Point
      3. 3.25" Height
Troubleshooting: Noise Issues
Alert
The majority of noise issues are caused by unsecured ceiling box/motor wires dragging on top of the motor. Please see all checklist items below, including the dragging wire check.

  1. Buzzing/Humming Noise Checklist

    1. Example Videos

    2. Check Installation
      1. Verify that the fan was installed as shown in the owner’s manual or installation video.
      2. Verify the fan was installed indoors. This fan cannot be installed in any type of outdoor space.
    3. Check Control Devices
      1. Verify a dimmer switch is not being used to control the fan speeds.
      2. If a dimmer switch is in use, verify it is only wired to the blue wire for light power and that dimmable LED bulbs are installed (the included bulbs are not compatible with dimmers).
      3. If a universal remote or wall control is in use, it will need to be bypassed to rule it out as the source of the problem.
    4. Check Ceiling
      1. Check that the ceiling does not have any level of slope, the ceiling must be level.
    5. Check Power Supply
      1. Verify that the fan is connected to US standard 120 volts/60 hz AC power.
    6. Check Screws
      1. Verify that all screws are tightened properly; loose screws on the light kit or motor housing will vibrate and cause a humming noise.
    7. Check Loose Parts
      1. Verify that the light kit and glass (if applicable) are properly tightened.
    8. Check Dragging Wires
      1. Remove the light kit, fan blades, blade arms, and motor housing to access the wires at the ceiling box.
      2. Using a ladder, check that the motor and ceiling box wires are fully tucked against the ceiling and are not dragging on top of the motor.
      3. This is the most common cause of noise issues and should be investigated thoroughly.
      4. Here are examples of wires dragging on top of the motor: Example Photos
    9. Customer Service
      1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.
      2. Attaching a video of the noise to your ticket will help customer service assist you further.
      3. A defective capacitor is the most likely culprit for humming/buzzing noise issues.

  1. Knocking/Grinding Noise Checklist

    1. Example Videos

    2. Check Gaps
      1. Check for loose packing materials or other objects between the blades, light kit, and motor housing.
      2. Gently spin the blades by hand to get a close look and see if they are grinding on any parts of the fan body.
    3. Check Ceiling
      1. Check that the ceiling does not have any level of slope, the ceiling must be level.
    4. Check Screws
      1. Verify that all screws are tightened properly; loose screws on the light kit or motor housing will vibrate and cause a humming noise.
    5. Check Dragging Wires
      1. Remove the light kit, fan blades, blade arms, and motor housing to access the wires at the ceiling box.
      2. Using a ladder, check that the motor and ceiling box wires are fully tucked against the ceiling and are not dragging on top of the motor.
      3. This is the most common cause of noise issues and should be investigated thoroughly.
      4. Here are examples of wires dragging on top of the motor: Example Photos
    6. Check Installation
      1. Verify that the fan was installed as shown in the owner’s manual or installation video.
      2. Verify the fan was installed indoors. This fan cannot be installed in any type of outdoor space.
    7. Break-In Fan
      1. If noise is light or mild and the fan is a new installation, allow the fan to run for 24 hours to break in the bearings.
    8. Customer Service
      1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.
      2. Attaching a video of the noise to your ticket will help customer service assist you further.

Troubleshooting: Operation Issues

  1. The pull chain is not smooth/getting stuck

    1. Check Chain Guide
      1. Verify that the chain is aligned with the hole for the light kit

    2. Customer Service
      1. If checklist item did not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.
      2. Attaching a video of the chain pull issue to your ticket will help customer service assist you further.
      3. A defective pull chain switch is the most likely culprit if the hole alignment is correct.
Troubleshooting: Fan Issues

  1. Fan is Running Slow or Does Not Turn On

    1. Check Installation
      1. Verify that the fan was installed as shown in the owner’s manual or installation video.
      2. Verify the fan is installed indoors. This fan cannot be installed in any type of outdoor space.
    2. Check Power
      1. Ensure power is on at the wall switch and breaker.
      2. Ensure fan is installed on a US standard 120v/60hz AC power supply.
    3. Check Pull Chains
      1. Ensure the fan speed pull chain is pulled all the way down and clicks when operating.
      2. If the pull chain gets stuck or does not pull down, it may be defective and will require replacement.
    4. Check Control Devices
      1. Verify a dimmer switch is not being used to control the fan speeds, the dimmer switch is only compatible with the light wire.
      2. If a universal remote or wall control is in use, it will need to be bypassed to rule it out as the source of the problem.
    5. Check Wiring
      1. Ensure AC power is off at the breaker before inspecting electrical connections.
      2. Verify that the ceiling connections are properly connected and done as shown in the owner’s manual.
      3. Verify the connections have not been pulled out of their wire nuts.
      4. Verify the connections are tucked into the outlet box or safely secured to the hanger bracket, with no wires dragging or touching the top of the motor.
      5. In particular, check the black wire (it supplies power to the motor) from the fan motor to the ceiling box.
      6. Verify that the plugs connecting the switch housing to the motor are fully clasped together, wires are not pinched, and pins have not been pushed out of the connectors.
    6. Check Reverse Switch
      1. Ensure the reverse slider switch is pushed all the way in either direction.
      2. If the switch is left near the center, the fan will have a difficulty starting up and running (or not turn on at all).
      3. If the fan only spins in one direction but will not move when the reverse switch is changed to the other direction, the reverse switch (part of the switch housing) is the most likely culprit.
    7. Customer Service
      1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.
      2. A defective capacitor (part of the switch housing) is the most likely culprit for fan function issues.

  2. Fan has Low Airflow

    1. Blade Direction
      1. Ensure the fan is set to the correct direction using the reverse switch on the switch housing.
      2. Counter-clockwise for forward/downward airflow (summer mode).
      3. Clockwise for reverse/upward airflow (winter mode).
    2. Blade Height
      1. Ensure the fan blades are between 7ft – 9 ft from the floor for optimal airflow.
      2. If the fan is installed too high, airflow will be reduced, and you will need a longer downrod (purchased separately) to lower the fan.
    3. Fan Speed
      1. Ensure the fan is set to the highest fan speed for maximum airflow. Test the fan at each speed to ensure you are selecting the highest one.
      2. If the fan appears to be running slower than usual, follow the “Fan is Running Slow” checklist above.

  3. Fan is Wobbling

    1. Check Screws/Loose Parts
      1. Verify that all screws are tightened properly; loose screws on the coupling cover, downrod, or hanger bracket can cause wobble.
      2. Verify that the light kit and glass (if applicable) are properly tightened.
    2. Check Mounting Structure
      1. The fan must be installed on a non-sloped ceiling (must be flat and level only).
      2. The fan must be installed on a UL listed ceiling outlet box that is rated "For Fan Support".
        1. Installing on a light fixture-only box or other type of mounting structure can cause stability and safety issues.
    3. Check Blades
      1. Verify that the blades are level with each other and are not warped.
      2. Remove the blades and stack them on top of each other to ensure they are all straight.
    4. Check Blade Arms
      1. Run the fan without the blades to see if wobble persists with the blade arms.
      2. If wobble stops, you may need a balancing kit.
      3. If wobble continues, remove the blade arms and run the fan again without them.
      4. If wobble stops, you may need a set of blade arms or a balancing kit.
    5. Customer Service
      1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.
      2. Attaching a video of the fan wobble with and without the fan blades to your ticket will help customer service assist you further.

Troubleshooting: Light Issues

  1. Light Does Not Turn On, Is Dim, or Flickers

    1. Check Power
      1. Ensure power is on at the wall switch and breaker.
      2. Ensure fan is installed on a US standard 120v/60hz AC power supply.
    2. Check Pull Chains
      1. Ensure the light pull chain is pulled all the way down and clicks when operating.
      2. If the pull chain gets stuck or does not pull down, it may be defective and will require replacement.
    3. Check Control Devices
      1. If a dimmer switch is in use, ensure you have dimmable bulbs installed (the included bulbs are not dimmable). Ensure you’ve tested the dimmer switch on all brightness settings.
        1. Ensure the dimmer switch is only wired to the light wire (blue) and not the fan speed wire (black).
      2. If a universal remote or wall control is in use, it will need to be bypassed to rule it out as the source of the problem.
    4. Check Wiring
      1. Ensure AC power is off at the breaker before inspecting electrical connections.
      2. Verify that the ceiling connections are properly connected and done as shown in the owner’s manual.
      3. Verify the connections have not been pulled out of their wire nuts.
      4. Verify the connections are tucked into the outlet box or safely secured to the hanger bracket, with no wires dragging or touching the top of the motor.
      5. In particular, check the blue wire (powers the light) from the fan motor to the ceiling box.
      6. Verify that the two plugs for the light kit in the switch housing are fully clasped together, wires are not pinched, and pins have not been pushed out of the connectors.
    5. Check Bulbs
      1. Verify that the bulbs have not burnt out and that they are compatible with the light kit (if purchased separately). Bulbs should be E26 medium base and should not exceed 60 watts each.
      2. If unsure, try another bulb on the socket. If the test bulb works, then the other bulb is defective. If the test bulb also does not work, there is likely an issue with the socket or wiring.
    6. Customer Service
      1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.
      2. A defective light kit is the most likely culprit for light issues that do not resolve even by installing new bulbs.
Troubleshooting: Fan & Light Issues

  1. Fan and Light Do Not Turn On

    1. Important Note Regarding All Function Failure
      1. The fan power (black wire) and light power (blue wire) functions are separate, so if they are both not working the issue would be related to issues with the neutral wires (white) or with the power source.
      2. The wire for the light (blue) goes straight from the top of the motor down to the switch housing plug underneath the motor.
    2. Check Power
      1. Ensure power is on at the wall switch and breaker.
      2. Ensure fan is installed on a US standard 120v/60hz AC power supply.
    3. Check Pull Chains
      1. Ensure the pull chain is pulled all the way down and clicks when operating.
      2. If the pull chain gets stuck or does not pull down, it may be defective and will require replacement.
    4. Check Control Devices
      1. Verify a dimmer switch is not being used to control both the fan and the light, the dimmer switch is only compatible with the light wire. If both the fan and light are wired to a single dimmer switch the fan may not work correctly.
      2. If a universal remote or wall control is in use, it will need to be bypassed to rule it out as the source of the problem.
    5. Check Wiring
      1. Ensure AC power is off at the breaker before inspecting electrical connections.
      2. Verify that the ceiling connections are properly connected and done as shown in the owner’s manual.
      3. Verify that the connections have not been pulled out of their wire nuts.
      4. Verify the connections are tucked into the outlet box or safely secured to the hanger bracket, with no wires dragging or touching the top of the motor.
      5. Verify that the connections in the switch housing are all together and wires are not pinched.
    6. Customer Service
      1. If checklist items have not resolved the issue, submit a ticket for further assistance and replacement parts from customer service.

Replacement Parts Guides



    • Related Articles

    • 44" Hugger

      Use the tabs below for fan information and for troubleshooting guidance. Need customer service support? Submit a Ticket Important: The Hugger had a revision in 2026 to its light shade design. Check the Version tab to confirm if you have the previous ...

    • 52" Hugger

      Use the tabs below for fan information and for troubleshooting guidance. Need customer service support? Submit a Ticket Important: The Hugger had a revision in 2026 to its light shade material and design. Check the Version tab to confirm if you have ...

    • 64" Kensgrove

      Use the tabs below for fan information and for troubleshooting guidance. Need customer service support? Submit a Ticket IMPORTANT: The 64" Kensgrove had a revision in 2021 to its electronics that may result in compatibility issues. Check the Version ...

    • 54" Kensgrove

      Use the tabs below for fan information and for troubleshooting guidance. Need customer service support? Submit a Ticket Identification BRUSHED NICKEL FINISH Model # YG493A-BN SKU # 1002910944 Alternate SKU: 1002876622 UPC # 792145372424 WHITE FINISH ...

    • 60" Abbeywood

      Use the tabs below for fan information and for troubleshooting guidance. Need customer service support? Submit a Ticket Identification BRUSHED NICKEL FINISH · Model # YG882A-BN · SKU # 1005077588 · UPC # 840059601342 ESPRESSO BRONZE FINISH · Model # ...
